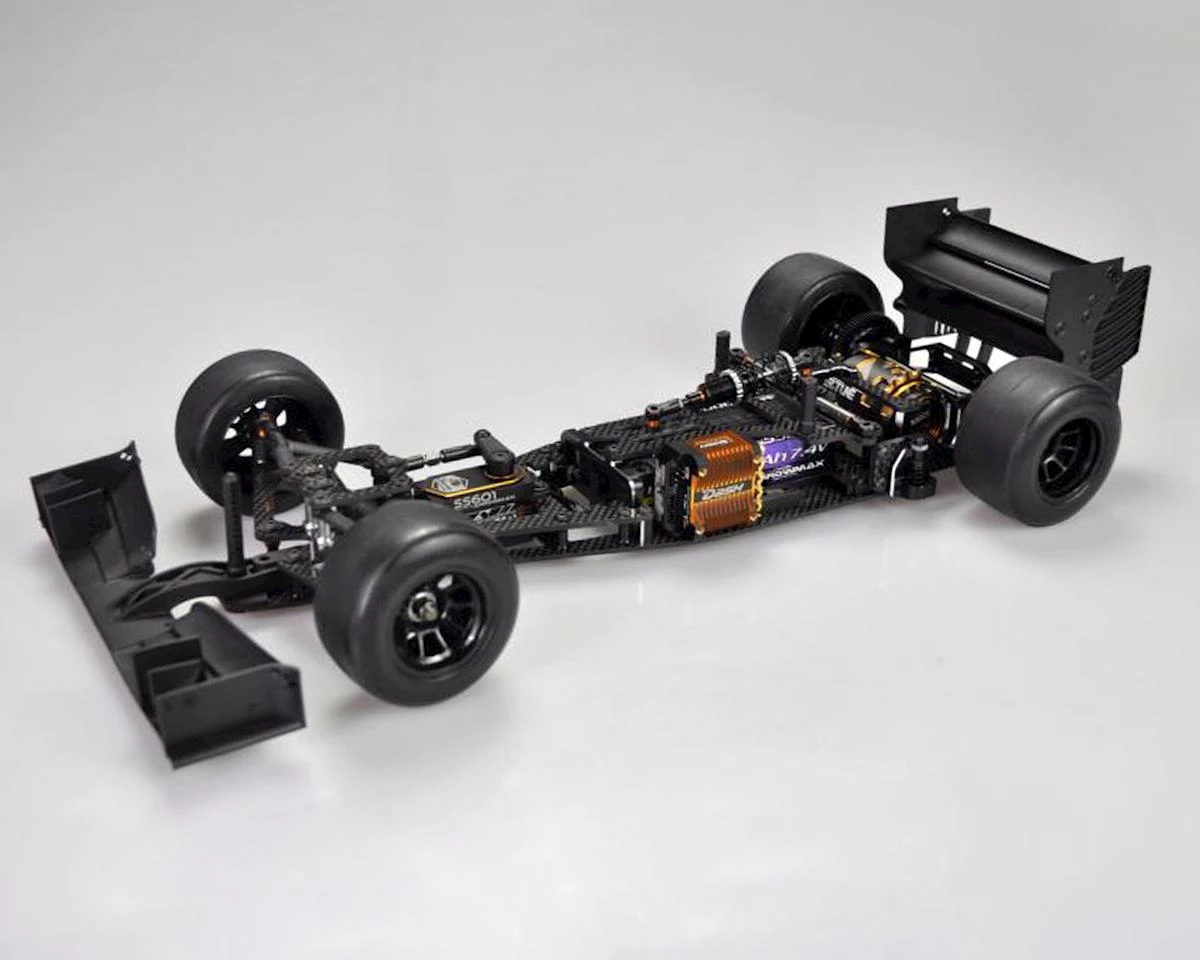

Serpent F110 SF4 1/10 Competition F1 Chassis Kit

This is the Serpent F110 SF4 1/10 Competition F1 Chassis Kit, the next evolution of the Serpent F110 platform that takes F1 1/10 racing to new levels of performance. The F110 SF4 is based on the racing experience gained over the last 2 years of racing IDFM, ETS, TiTC, CETC and races all over the world. Made by racers for racers.

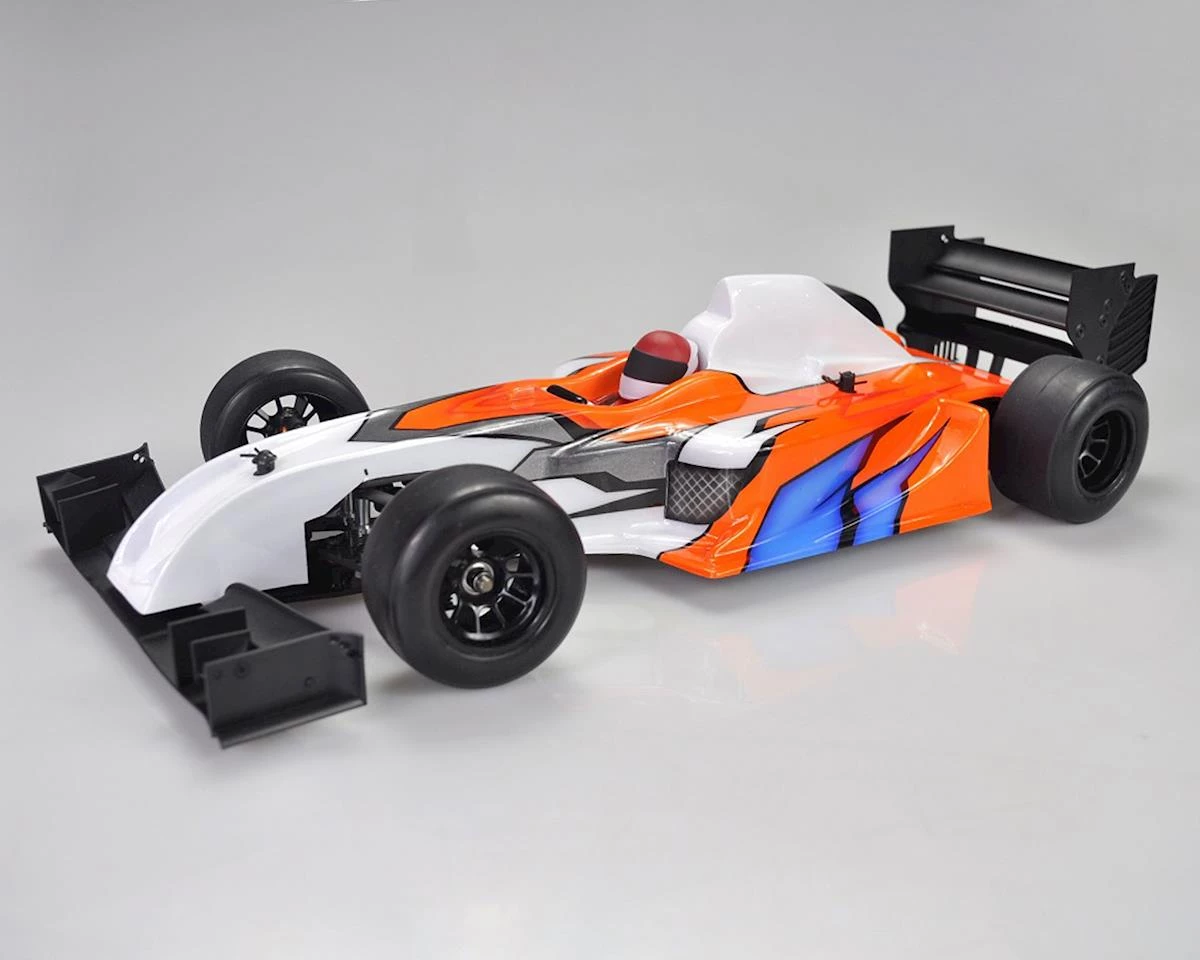

NOTE: Painted body, electronics, wheels and tires are shown in photos for reference only. These are not included in the kit and must be purchased separately. See needed to complete list below for a full list of items required to complete the model.

• Innovative design for the rear pod with side bearings in linear guides replacing the side links
• The roll motion is completely linear and independent, making the cornering completely independent from accelerating or braking

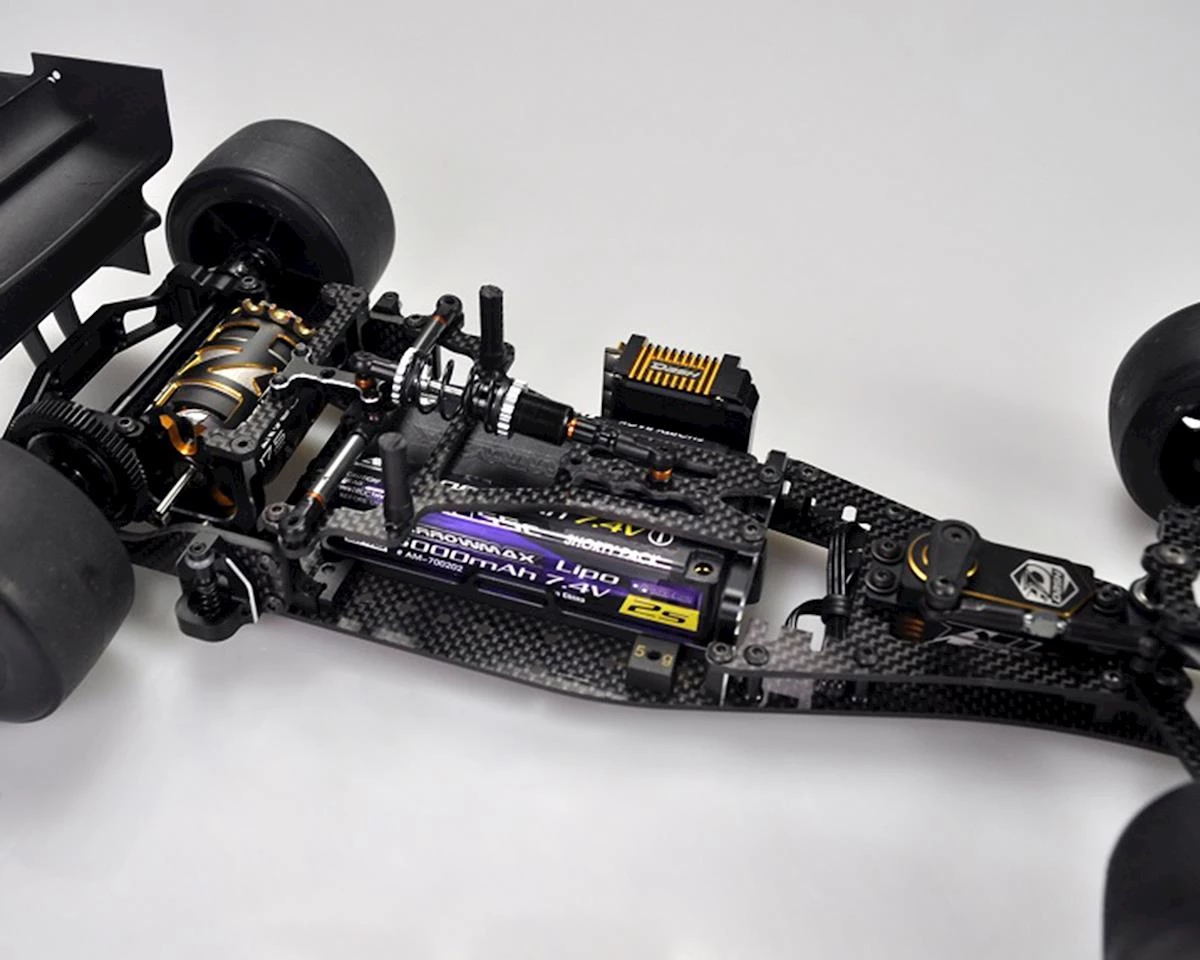

• Lipo longitudinal or Lipo transversal with narrow chassis design
• Side bearing design allows the use of both inline and cross lipo orientation while keeping a narrow chassis design
• Special holders for lipo’s
• Special electronics holders included in the kit for both configurations
• Full strength top-deck to prevent longitudinal flex and keep torsional flex on a reasonable level
• Lipo can be exchanged without removing the body
• 1-screw Lipo mount in all lipo orientations

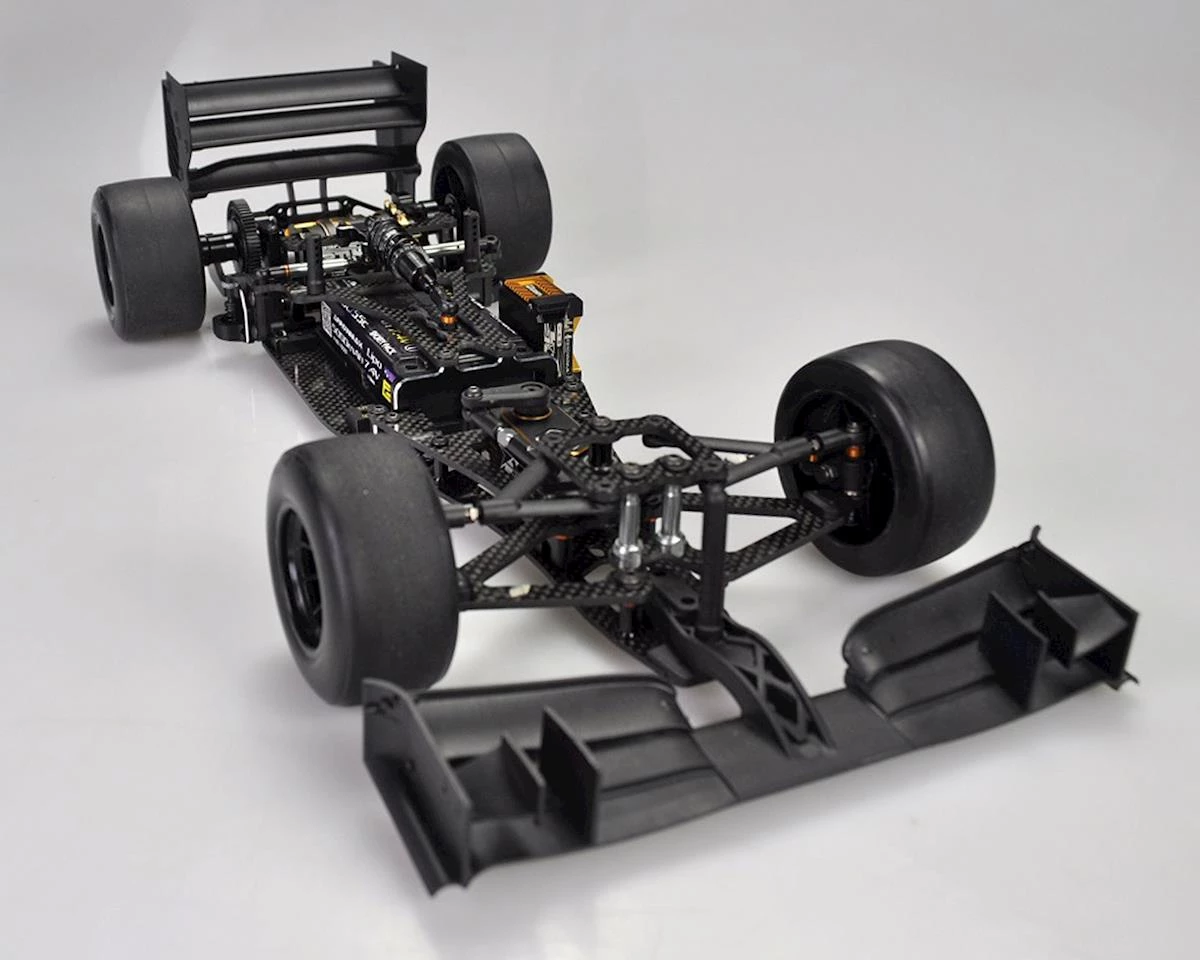

• Race-proven and strong front suspension from the F110 SF3 is evolved with more width to increase the stability of the car
• 2-position servo mounting plate which works as front top-deck at the same time, preventing mutual influence between longitudinal chassis flex and steering
• Wing mount which is independent of the rear pod movement
• Double short tube system for the rear roll damping
• Ultra-low center of gravity rear pod
• Angled rear plate gives torsional stiffness, protecting the rear shaft and bearings, keeping all masses low in the pod
• Bulkheads are completely redesigned to keep masses as low as possible
• Rear shaft mount is completely updated and innovative
• Ball diff with an additional long-life thrust bearing runs very smooth and allows a strong locking effect
• Rear shaft with variable diameter
• Pod Bulkheads completely keyed to the graphite plates to avoid tweak issues

Weight: 10 lbs

Type & Scale: Electric 1/10 F1 Car

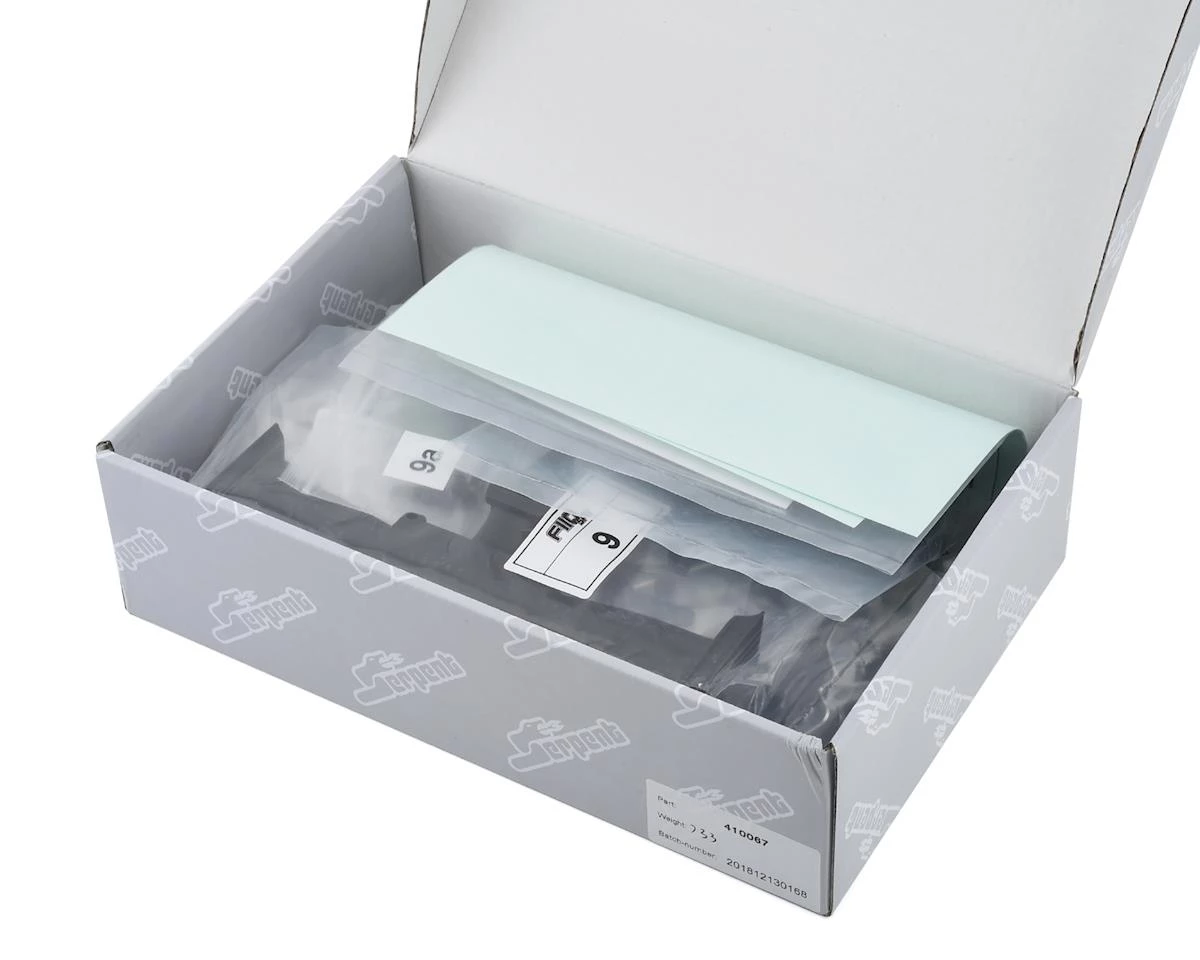

• F110 SF4 F1 Chassis Kit
• 600cst Shock Oil
• 30,000 Diff Fluid

Needed to Complete:

• 3 Channel Radio System w/High Speed Steering Servo
• 1/10 F1 Tires & Wheels
• Motor & ESC
• 4 Cell NiMH, or 1S LiPo Battery & Compatible Charger
• 1/10 F1 Car Body & Polycarbonate Paint
